Short answer: MOLLE (Modular Lightweight Load-carrying Equipment) is a modular system for attaching pouches to bags, belts and vests, and PALS (Pouch Attachment Ladder System) is the grid it uses: rows of 1-inch webbing, spaced 1 inch apart and stitched down every 1.5 inches. Any pouch built to that grid can move to any bag, belt or panel built to it.
What do MOLLE and PALS stand for?
MOLLE is the name of the whole load-carrying system, developed for the U.S. military. PALS is the ladder of webbing that makes it modular. In everyday use people say “MOLLE” for both, and most product listings do too. When a bag is described as MOLLE-compatible, it means it carries PALS-style webbing or slots.
What are the exact PALS dimensions?
| Measure | Standard |
|---|---|
| Webbing width | 1 inch (25 mm) |
| Gap between rows | 1 inch (25 mm) |
| Stitch spacing along each row | 1.5 inches (38 mm) |
| Channel a pouch strap passes through | The 1.5-inch space between two stitches |
Those numbers are why a pouch from one maker fits another maker's bag. When a grid is off by a few millimeters, straps bind or pouches sag, which is the most common complaint about cheap panels.
MOLLE terms in plain English
| Term | What it means |
|---|---|
| Row | One horizontal strip of 1-inch webbing, or one line of slots on a laser-cut panel |
| Channel | The 1.5-inch opening between two stitches that a strap passes through |
| Column | A vertical stack of channels; a pouch uses one strap per column |
| Weave | Threading a strap alternately through the panel and the pouch |
| Loop field | A hook-and-loop area for patches and light carriers; not part of PALS |
Woven webbing or laser-cut panels?
Traditional PALS is sewn webbing. Newer gear cuts the same ladder as slots into a single laminated sheet. Laser-cut panels are flatter, lighter and snag less; sewn webbing is bulkier but easier to repair. Most PALS pouch straps fit both. Laser-cut vs woven MOLLE compares them in detail, and hook-and-loop vs laser-cut panels covers where a loop field fits in.

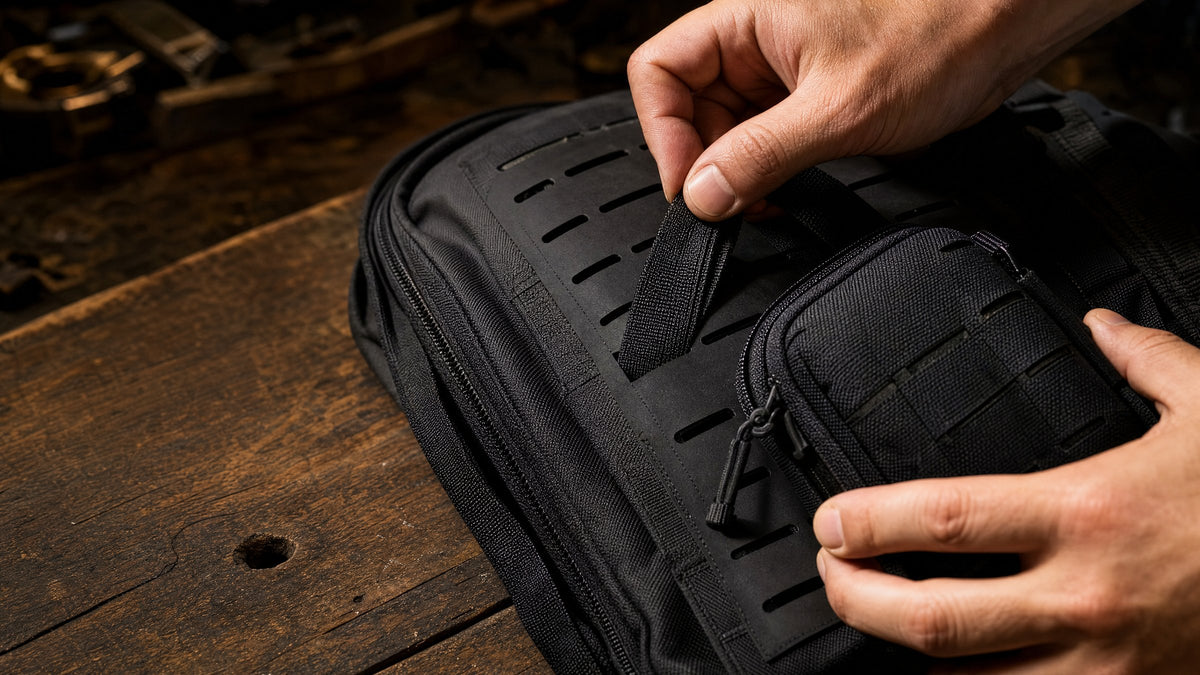

How do you attach a MOLLE pouch?
- Line up the pouch where you want it and check you can open it with the hand you will use.
- Weave the strap behind the first row on the panel, then through the first loop on the pouch, then behind the next panel row.
- Keep alternating panel, pouch, panel down to the bottom of the pouch.
- Lock the strap with its snap, or tuck the end into the last channel.
- Pull hard in every direction. A correctly woven pouch does not slide or rotate.
Skipping rows is the usual mistake: a strap that catches the panel but not the pouch in between leaves the pouch free to flop. If a pouch still turns, why your pouch rotates, and five fixes covers the rest. For shoulder straps, see how to mount a pouch on a backpack strap.
How to tell a well-made grid
- Measure it. Rows should be 1 inch tall with 1-inch gaps, and the stitched columns 1.5 inches apart. A tape measure settles it in a minute.
- Look at the ends. The ends of each row are where a panel takes load; loose or single-pass stitching there is the first thing to fail.
- Test the channels. A pouch strap should slide through with a firm push, not fall through and not jam.
- On laser-cut panels, check the slot edges. Clean, sealed edges resist fraying; ragged edges tear.
Why MOLLE matters in everyday carry
MOLLE started on military load-bearing gear, but its everyday value is simple: build a kit once and move it. The compact zip organizer or the adjustable radio carrier can ride on the modular crossbody bag on a workday and on the 14L modular backpack on a longer one. The magnetic phone mount is made for straps and webbing in the same way.
FAQ
Is MOLLE the same as PALS?
Not quite. PALS is the webbing grid; MOLLE is the wider system that uses it. Most sellers use the two words interchangeably.
Do all MOLLE pouches fit all MOLLE bags?
Pouches built to the standard spacing fit any panel built to it. Check the pouch height: it should weave through at least two panel rows to sit firmly.
How many columns does a pouch need?
One strap runs through each 1.5-inch column, so a pouch about 3 inches wide uses two straps. Wider pouches use more, and more straps mean less rotation.
Can MOLLE pouches go on a belt?
Yes, on a belt wide and stiff enough to support the weave. Belt widths explained covers what fits a 1.5-inch and a 1.75-inch belt.
Is a laser-cut panel as strong as sewn webbing?
For everyday loads, a well-made laminated panel holds pouches securely. Sewn webbing spreads load over more stitching and is easier to repair, which matters most under heavy loads.
